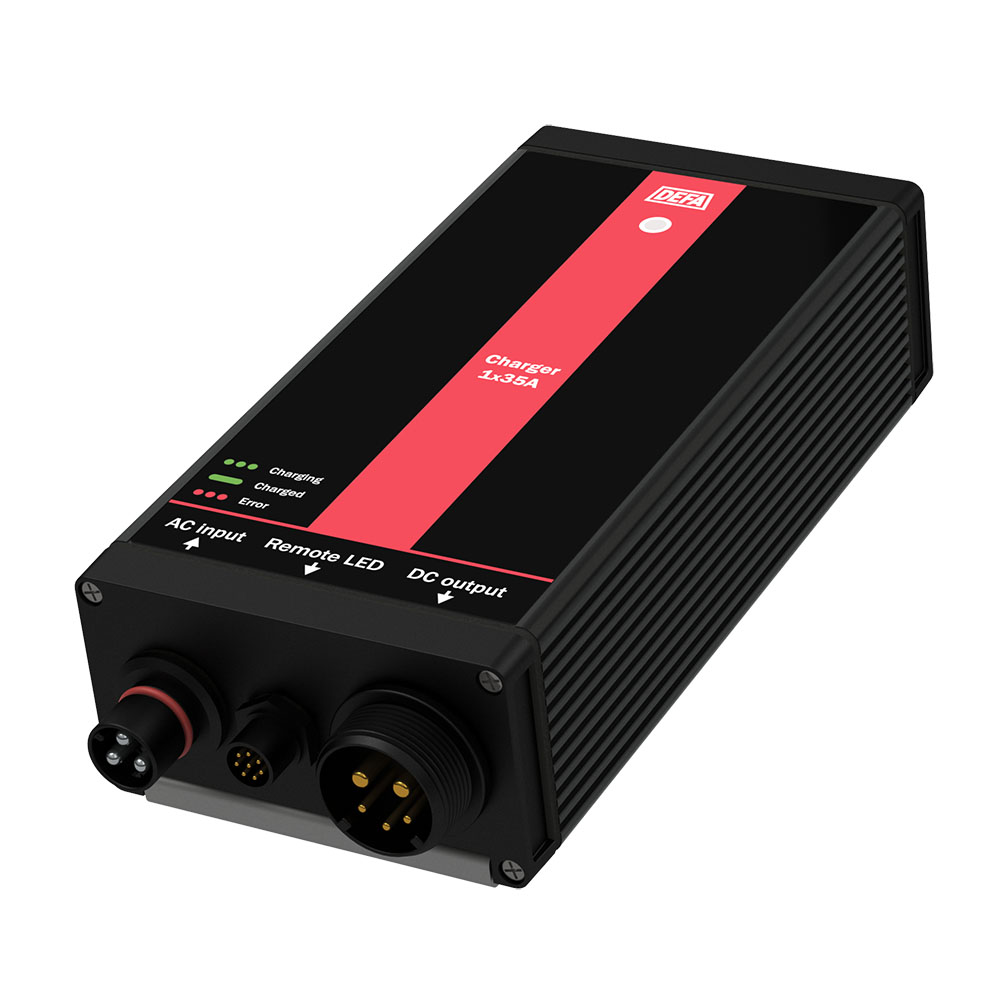

Onboard battery charger MultiCharger 1x35A, front

MultiCharger 1x35A

Onboard charger

DEFA MultiCharger 1x35A represent the latest in charging technology and ensures optimal battery performance and longevity.

Art. nr: 704600

Description

DEFA MultiChargers are designed to simplify the installation and use of quality battery chargers in heavy vehicles. They are based on modern switch-mode technology and galvanized divisions, ensuring first-rate efficiency and dependability. MultiChargers are built to withstand harsh conditions. They can be used with all types of lead/acid batteries.

MultiCharger 1x35A is ideal for battery sizes up to about 600Ah. It can provide maintenance charging for an unlimited time. The charging is temperature compensated.

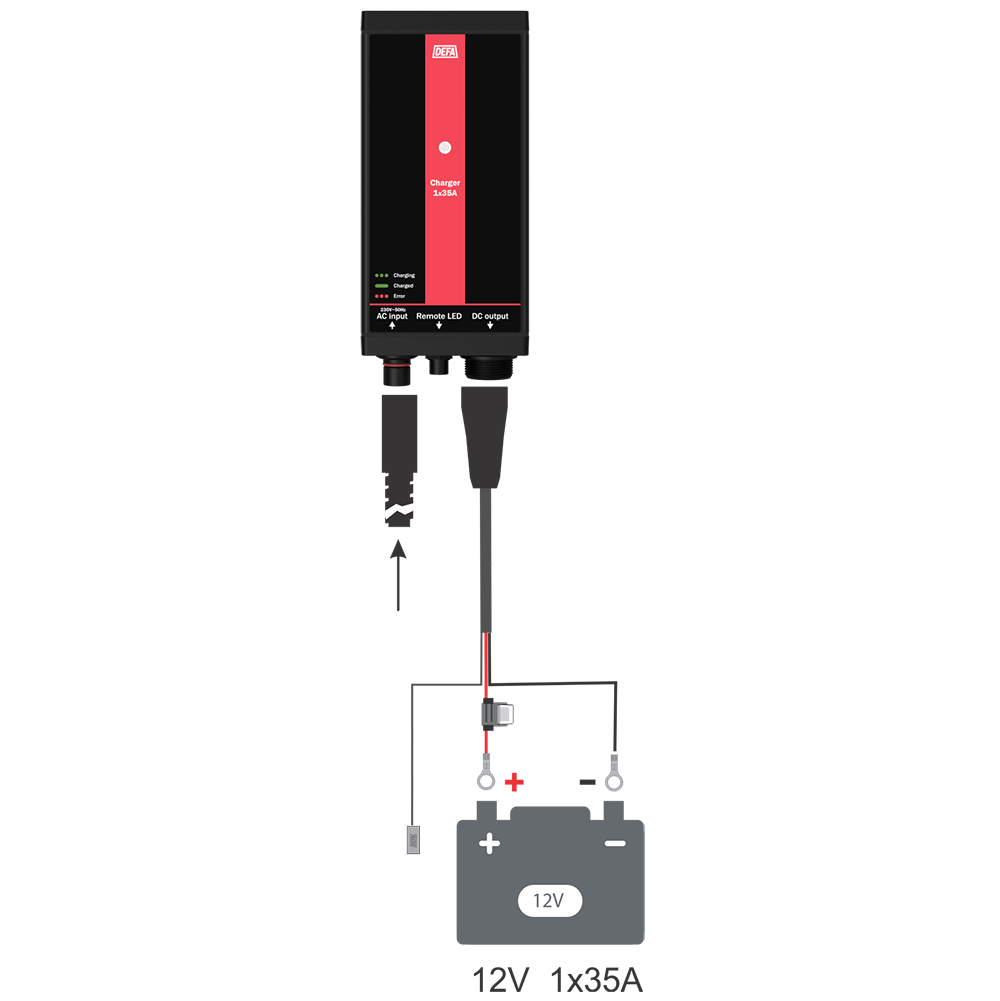

To increase flexibility for customers with varying needs, the charger comes without a fixed charging cable. Cables are available in several in several lengths and must be ordered separately. This also applies to the remote LED panel.

Accessories
705463 – Power cable Schuko-PlugIn
705294 – 5m Remote LED panel
705295 – 10m Remote LED panel
705296 – 20m Remote LED panel
705297 – 25m Remote LED panel
705099 – 2m Charging cable
705147 – 4m Charging cable
705159 – 6m Charging cable
705160 – 8m Charging cable

Technical description

DEFA AS conforms to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007. In addition, our engine heaters and cables conform to the requirements of ISO/TS 16949:2002.

Input voltage
Operating temperature
Charging voltage
Maintenance charging
Charging current
Battery size, max
IP rating
Size
Weight
Certification(s)
230V AC
-35°C / +50°C
14,4V DC (Temperature-compensated approx 5,0 mV/°C/cell. Ref. 25°C)
13,5V DC
35A
600Ah
IP44
200x98x53mm
2kg
EN60335-1, EN60335-2-29, EN55014-1, EN55014-2, EN61003-3/2
