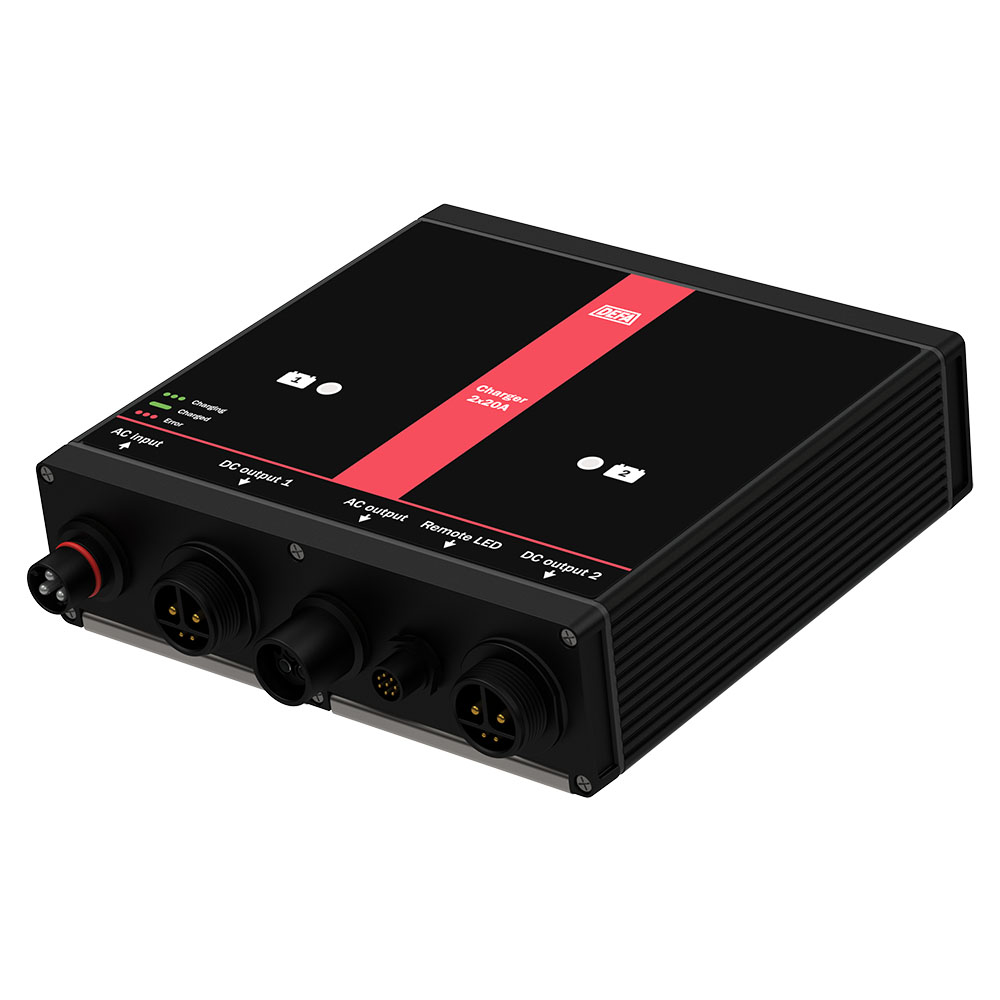

MultiCharger 2x20A

Onboard charger

DEFA MultiCharger 2x20A represent the latest in charging technology and ensures optimal battery performance and longevity.

Art. nr: 705900

Description

DEFA MultiChargers are designed to simplify the installation and use of quality battery chargers in heavy vehicles. They are based on modern switch-mode technology and galvanized divisions, ensuring first-rate efficiency and dependability. MultiChargers are built to withstand harsh conditions. They can be used with all types of lead/acid batteries.

MultiCharger 2x20A is ideal for battery sizes up to about 2x300Ah. It can provide maintenance charging for an unlimited time. The charging is temperature compensated.

MultiCharger 2x20A has two separate charge outputs. Each output has a separate temperature sensor and remote LED.

To increase flexibility for customers with varying needs, the charger comes without a fixed charging cable. Cables are available in several in several lengths and must be ordered separately. This also applies to the remote LED panel.



Available accessories
705463 – Power cable Schuko-Plugin
705162 – 5m Remote LED panel
705163 – 10m Remote LED panel
705164 – 20m Remote LED panel
705165 – 25m Remote LED panel
706483 – 2m Charging cable
706484 – 4m Charging cable
706485 – 6m Charging cable

Technical description

DEFA AS conforms to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007. In addition, our engine heaters and cables conform to the requirements of ISO/TS 16949:2002.

Input voltage
Operating temperature
Charging voltage
Maintenance charging
Charging current
Battery size, max
IP rating
Size
Weight
Certification(s)
230V AC
-35°C / +50°C
14,4V DC (Temperature-compensated approx 5,0 mV/°C/cell. Ref. 25°C)
13,5V DC
2x20A
2x300Ah
IP44
183x190x53mm
3kg
EN60335-1, EN60335-2-29, EN55014-1, EN55014-2, EN61003-3/2
