MultiCharger 1x20A
Onboard charger

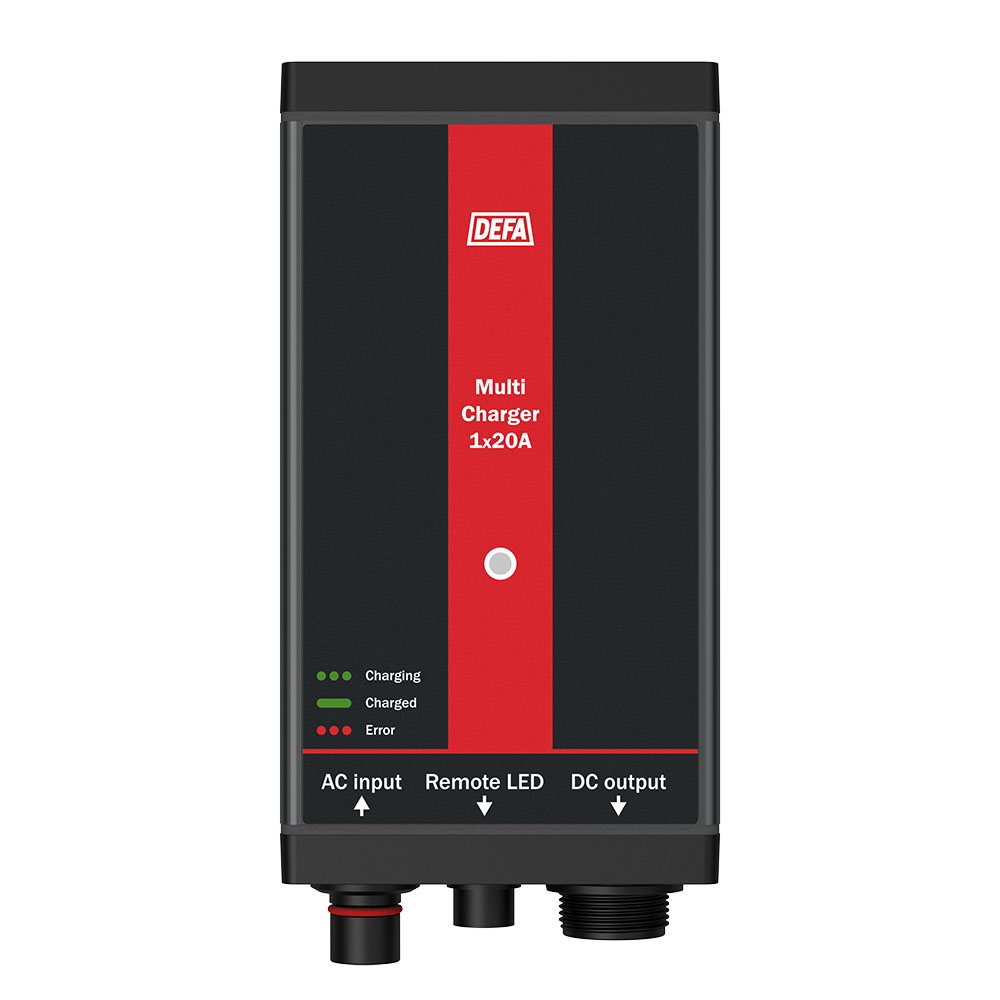

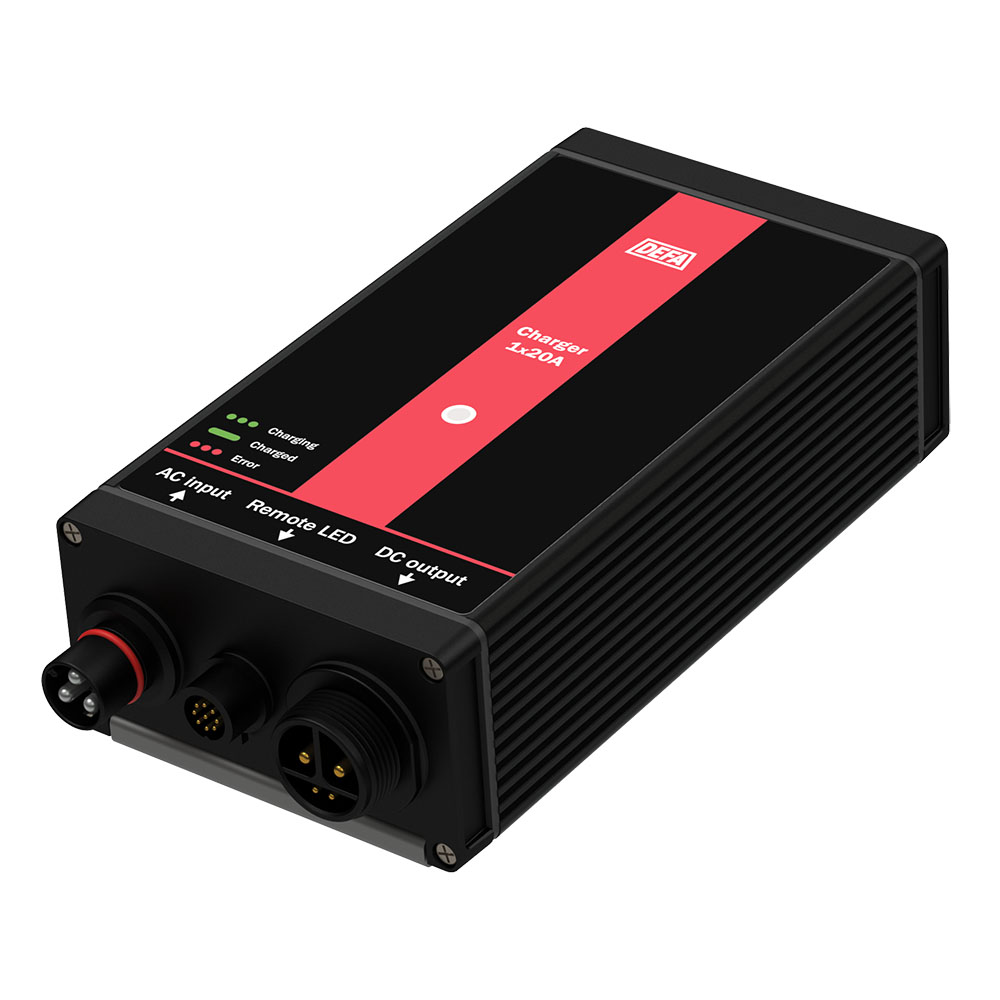

DEFA MultiCharger 1x20A represent the latest in charging technology and ensures optimal battery performance and longevity.
Description
DEFA MultiChargers are designed to simplify the installation and use of quality battery chargers in heavy vehicles. They are based on modern switch-mode technology and galvanized divisions, ensuring first-rate efficiency and dependability. MultiChargers are built to withstand harsh conditions. You can use them with all types of lead/acid batteries.
MultiCharger 1x20A is ideal for battery sizes up to about 300Ah. It can provide maintenance charging for an unlimited time. The charging is temperature compensated
Accessories:
705463 – Power cable Schuko-PlugIn
705294 – 5m Remote LED panel
705295 – 10m Remote LED panel
705296 – 20m Remote LED panel
705297 – 25m Remote LED panel
706483 – 2m Charging cable
706484 – 4m Charging cable
706485 – 6m Charging cable
Technical description
DEFA AS conforms to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007. In addition, our engine heaters and cables conform to the requirements of ISO/TS 16949:2002.
Input voltage
Operating temperature
Charging voltage
Maintenance charging
Charging current
Battery size, max
Insulation class
IP rating
Size
Weight
Certification(s)
230V AC
-35°C / +50°C
14,4V @ 25°C
13,5V DC
20A
300Ah
I
IP44
183x98x53mm
1,5kg
EN60335-1, EN60335-2-29, EN55014-1, EN55014-2, EN61003-3/2
Mounting
Equipment damage and injury may result from improper installation and use. If you are unfamiliar with electrical systems: consult us, a dealer or a licensed electrician.
The charger is maintenance-free.
Read the installation and user guide carefully.
