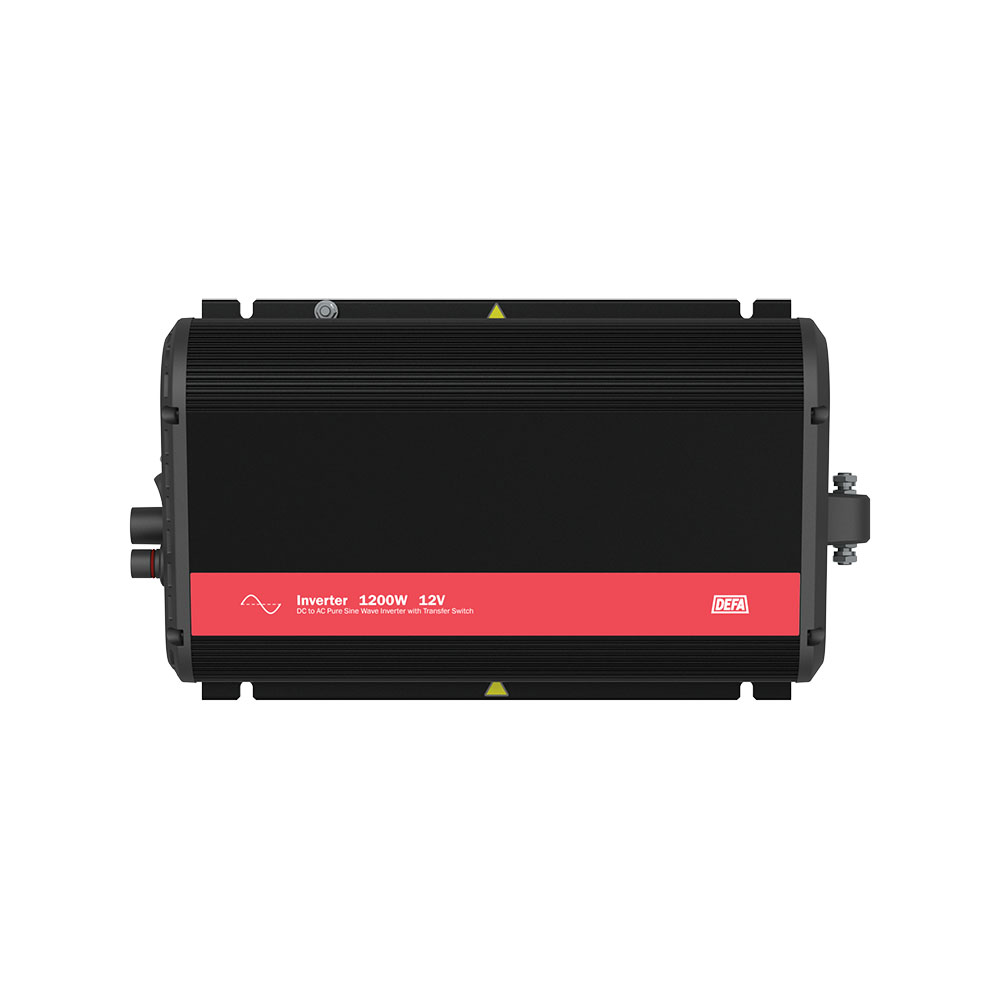

Inverter 1200W 12V

12V to 230VAC inverter

A compact, reliable and silent inverter for light commercial vehicles. It can be integrated with our PlugIn system.

Art. nr: 709090

Description

The DEFA inverter 1200W 12V is highly efficient, easy to install, and provides reliable 230VAC power with pure sine. It can handle all modern alternators, and double-peak output ensures that it can start heavy motorized equipment. It is fully compatible with the DEFA PlugIn system, and you can easily install several 230V outlets in your vehicle.

Inverter 1200W 12V features:

Easy installation

Inverter 1200W 12V is 20% smaller than previous versions and is easy to mount even with minimal available space thanks to our unique PlugIn connector and cable system. Adding a remote control panel makes installation even more flexible.

Integrated transfer switch

This model is available with an integrated transfer switch (Art. 709090). A transfer switch makes it possible to supply sockets in the vehicle both from the inverter and from a mains outlet when possible. The transfer switch automatically switches between each power source and ensures that power is not being drawn from the battery when you connect the vehicle to mains.

Not having to install a separate transfer switch also helps save space in the engine compartment.

Inverter 1200W 12V – ECO Mode

The new ECO Mode minimizes the drain from the battery when the inverter is not in use.

Remote Control Panel

Inverter 1200W 12V can be operated from a remote control panel (Art. 709340 – must be ordered separately). The panel makes installation of the inverter more flexible since it can be mounted in locations where it’s not easily accessible.

Reduced noise

Because of the high current required to create 230VAC, inverters need fans to help prevent overheating. Our new inverter has a fan with variable speeds, which helps reduce noise when only limited cooling is required.

Consider installing a battery charger

Using an inverter requires a significant amount of power from your battery. In addition to having two batteries, we recommend that you install an onboard battery charger to maintain battery performance and life expectancy. Without frequent charging, your batteries will quickly drain and degrade. When this happens, you may no longer be able to start your vehicle or use your inverter.

Our onboard battery charger solutions are easily connected to and integrated with our inverters through the PlugIn system.

Technical description

DEFA AS is conforming to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007. In addition to this, our engine heaters and cables are conforming to the requirements of ISO/TS 16949:2002.

Variant
709090
709191
Version Input voltage Constant output power Output voltage, pure sine wave No load power Eco mode power Thermal protection, auto-shut off Auto shut-off at Alarm for low voltage Input fuse Operating temperature Size Weight Peak Power (2s)
With transfer switch 10-16V DC 1200W 220-240V < 1,7A < 0,6 65°C H: 16,5V (± 0,5) / L: 10,0V (± 0,5) 10,8 (± 0,5) 40A (5) -30°C / +60°C 360x225x92,5mm 4,5kg 2400W
Without transfer switch 10-16V DC 1200W 220-240V < 1,7A < 0,6 65°C H: 16,5V (± 0,5) / L: 10,0V (± 0,5) 10,8 (± 0,5) 40A (5) -30°C / +60°C 360x225x92,5mm 4,5kg 2400W
