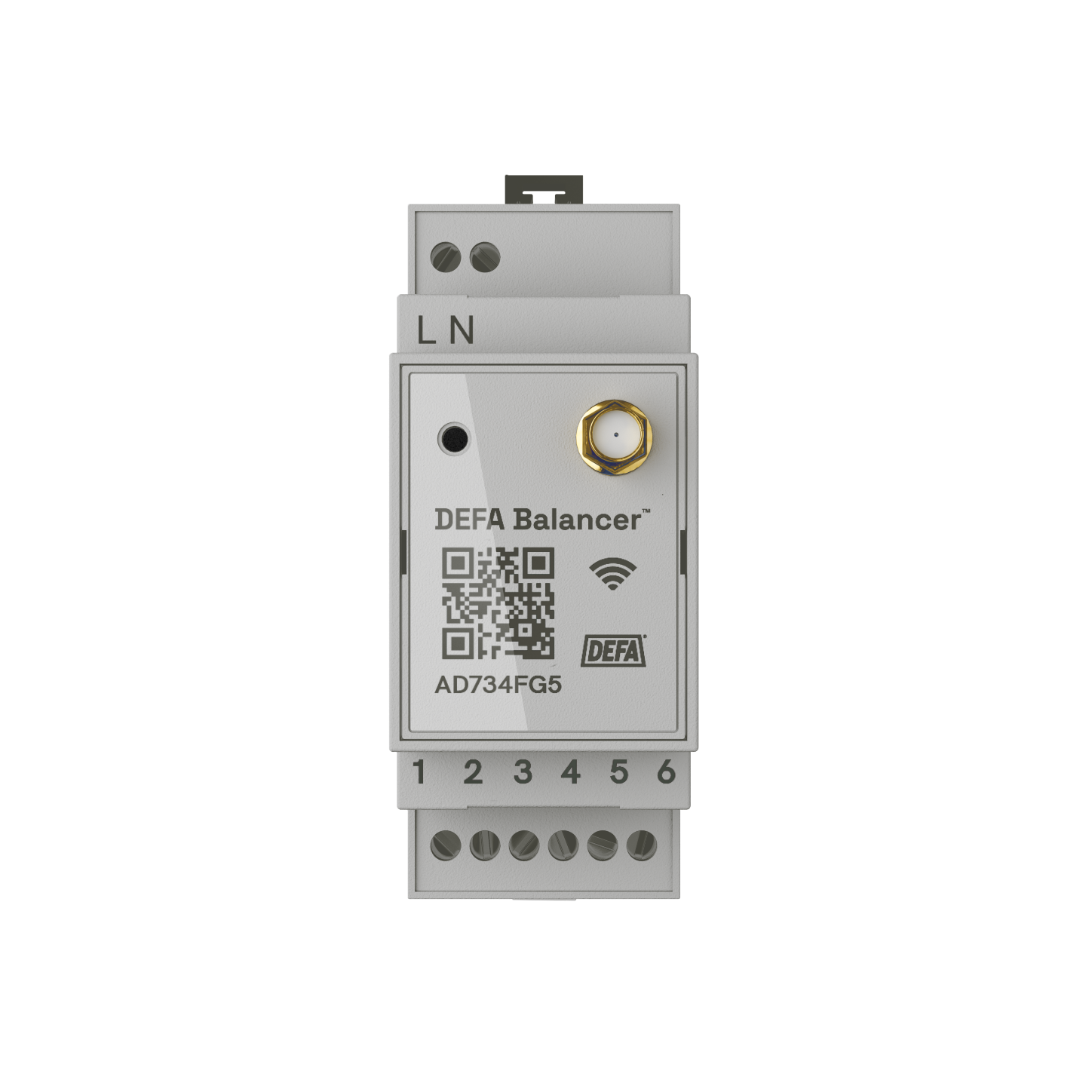

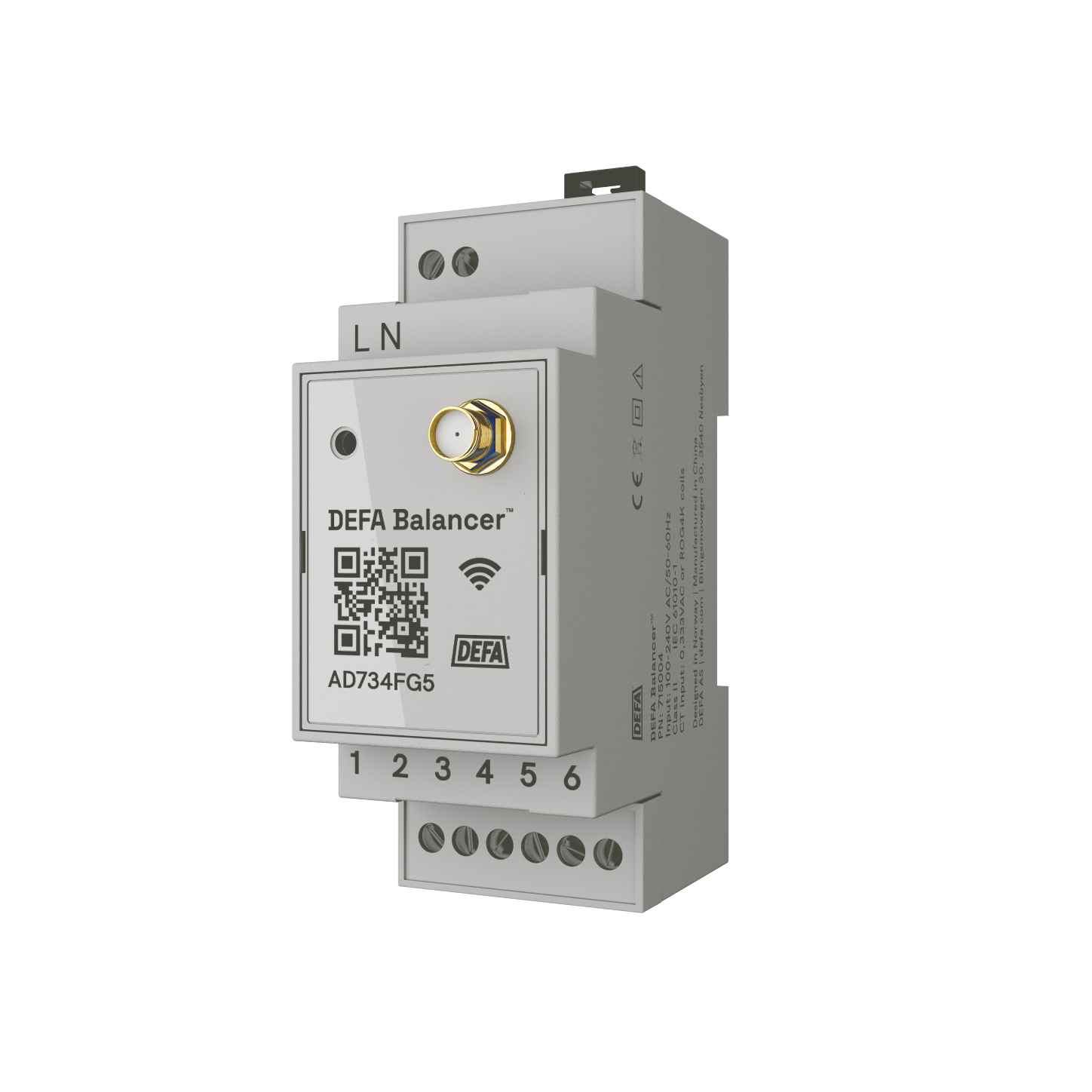

DEFA Balancer™

Load balancing unit

Including Sensor Kit. For home installations up to 80A. Optimize utilization of power in a DEFA Power installation.

Item no: 715004

Description

Optimizing use of all available power in your installation. DEFA Balancer monitors power consumption and distributes available power directly to the charging station.



Easy installation — and one solution fits all.

Wireless or wired installation.

DEFA Balancer is compatible with DEFA Power Charging station.



Technical description

Dimension:

Number of modular spacings: 2

General:

Product name: DEFA Balancer
Part number: 715004
Product or component type: Current sensor
Product specific application: Load monitoring
Type of measurement: Current
Accuracy: +- 2%
Metering type: Current L1, L2 and L3
Ambient air operating temperature: -25°C to +60C°
Ambient air storage temperature: -30°C to +70°C

Interface:

LED

Current transformers:

Product or component type: Current transformer
Maximum current [Imax]: 80A
Measurement type: 0.333V
Cable length: Approx. 100cm

Antenna:

Connector type: SMA male
Connector angle: 90°
Cable length: 1 m
Frequency range: 2.4GHz or 5GHz (Wi-Fi)

Communication:

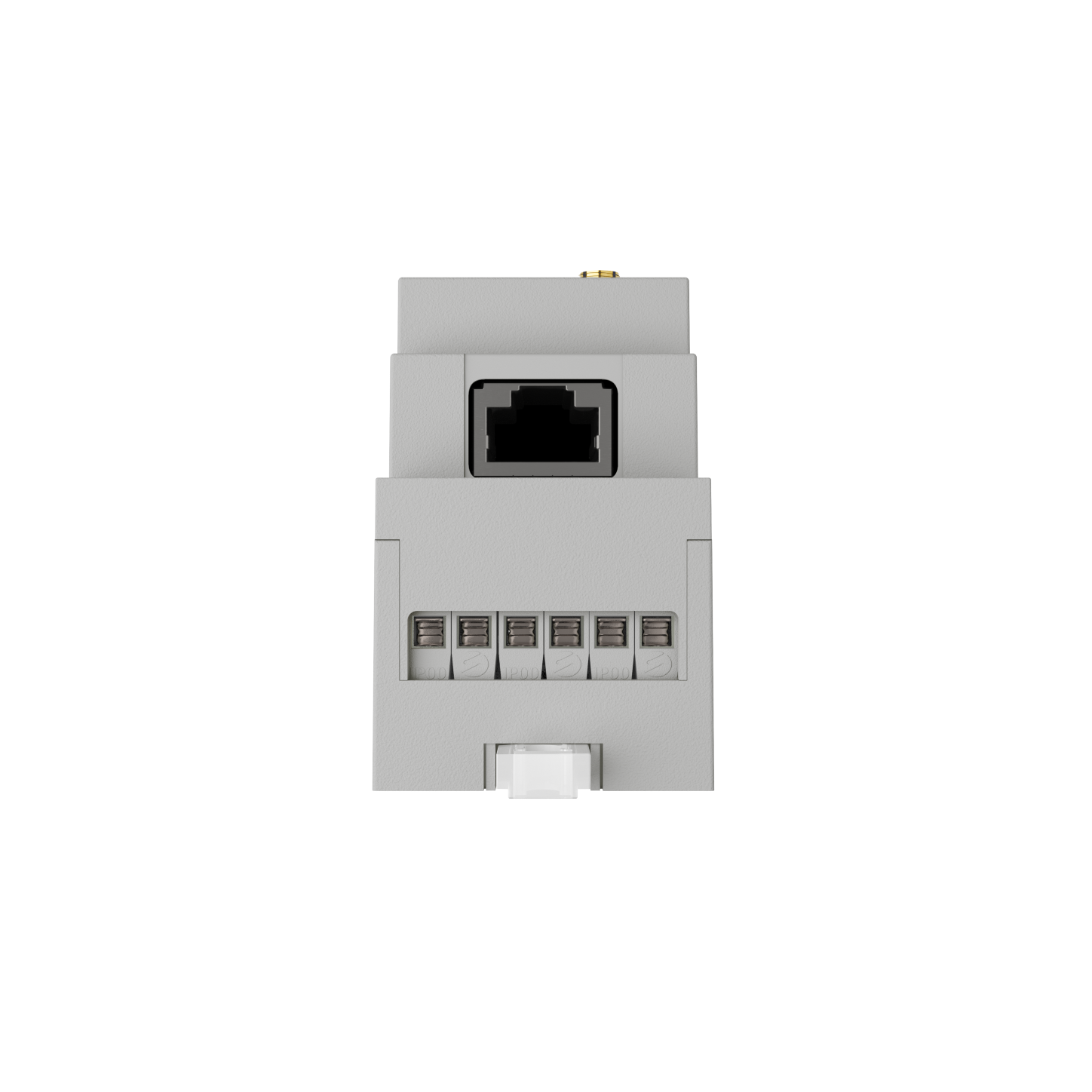

Transmission medium: Radio frequency 2.4GHz or 5GHz (Wi-Fi) Ethernet
Antenna connector: SMA female

Safety & protection:

Overvoltage category: II
IP degree of protection: IP20
IK degree of protection: IK06
Pollution degree: 2
Relative humidity: 0…95 % at 55 °C
Appliance class: Class ll
Operating altitude: 0…2000m

Standard & certification:

CE
Safety: IEC 61010-1
Radio / EMC: 2014/53/EU – RED

Connection:

Grid: TN / IT / TT

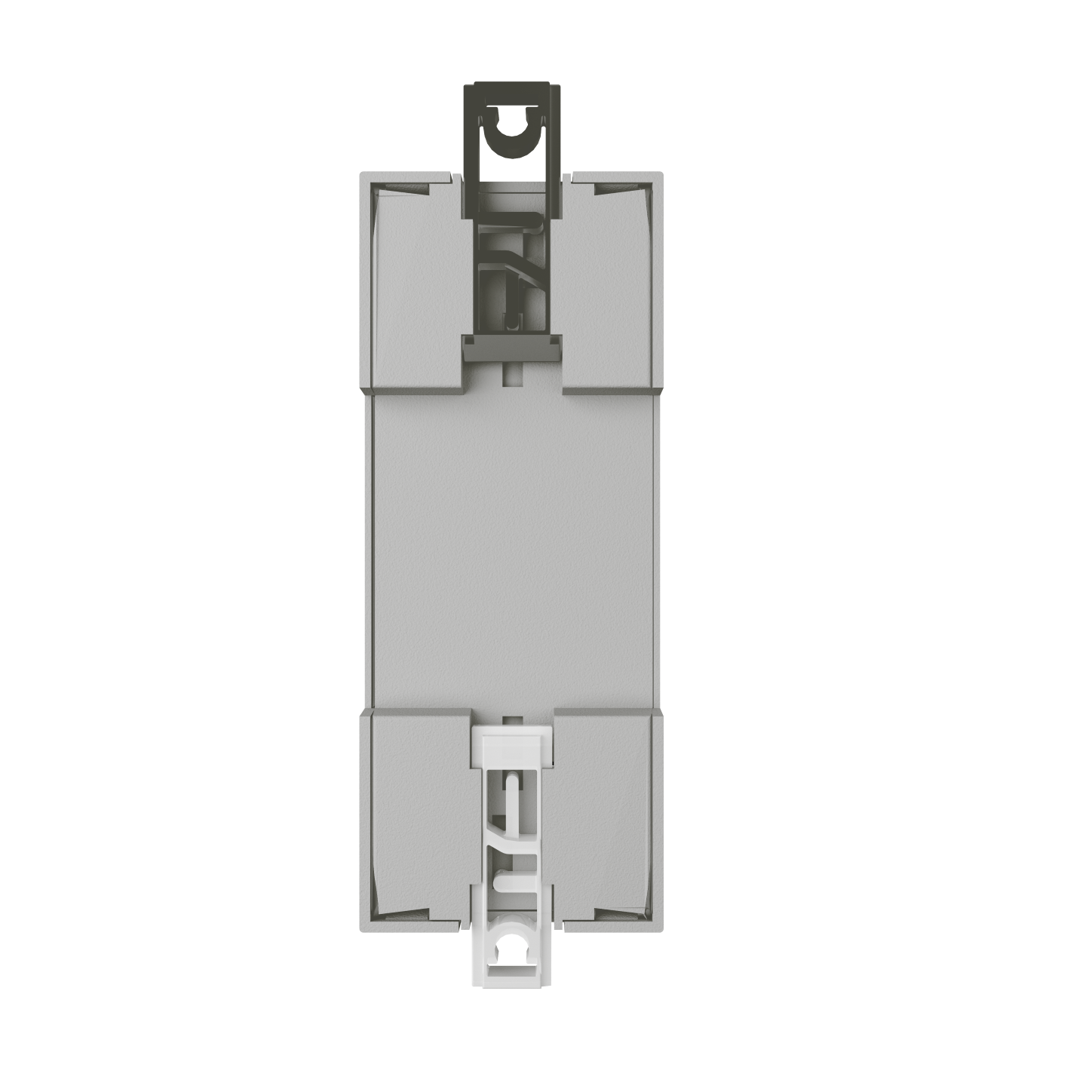

Mounting mode: DIN rail
Cable Entry: 0.2-2.5mm²
Tightening torque: 0.5Nm
Supply voltage: 230 V AC, +/- 10 %
Frequency: 50/60HZ
Consumption: 0.03A

Warranty:

5 years

Recycling:

Electronic waste

Included:

  • DEFA Balancer
  • 3 x 80A current sensor
  • Wi-Fi antenna
