Antares

LED floodlight

Strong LED floodlight for various application areas

Item no: 119730
See specifications
Shortcuts:

Description

Compact asymmetrical LED floodlight with high light output. Body of die-cast aluminium and 4 mm tempered safety glass. The fitting is supplied with a vent plugg to avoid condensation inside the fitting. The adjustable steel bracket is given a sinc threatment. The body and the bracket are powder painted in Anthracite RAL 7039. 8kv Surge Protection device is standard.

Application areas

Parking, larger areas and plants, harbour, industry etc.

Others

Available on request: Night reduction, lower effects, DALI and symmetrical light distribution. 2200K/3000K/4000K/5700K.

Technical description

Accessories:

120627 Pole bracket Antares Ø60mm

Lifetime Ta25: 80.000h L90B10
Lifetime Ta40: 60.000h L80B10

Variant
119730
Colour temperature Effect fitting Luminous flux fitting Luminous efficiency fitting Colour index Ra Colour tolerance MacAdam
4000K 315W 41030 lm 130 lm/W >80 3

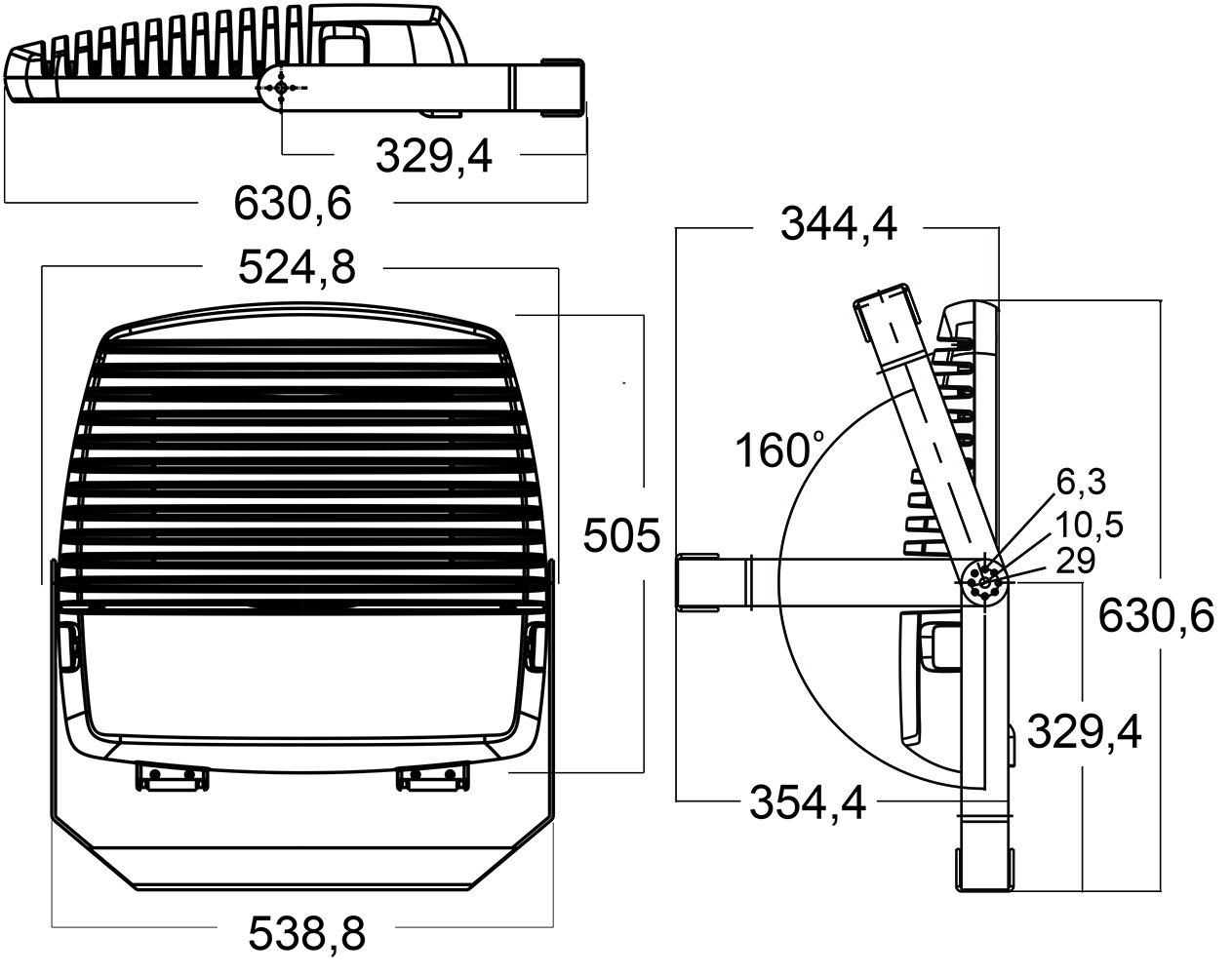

Mounting

Up-standing, hanging and on wall.

Installation

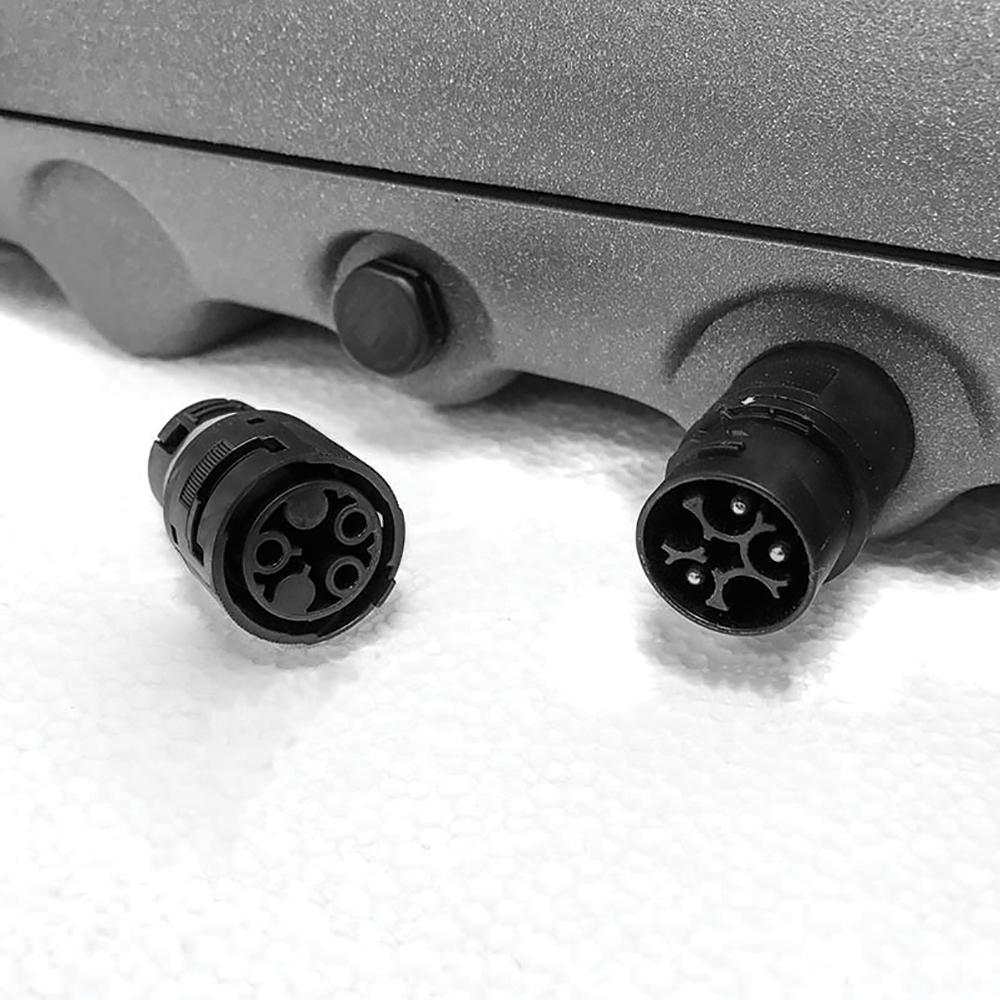

Driver inside the fitting. M20x1,5 nipple.

Downloads

Product sheet (pdf)
Mounting (pdf)
Photometrics ldt (zip)
