Pixel
LED Floodlight
Pixel - compact floodlight for many applications
Luminous flux fitting
Description
Compact asymmetrical floodlight with high light ourput, in 4 different versions. Body of die-cast aluminium and 4 mm tempered safety glass. The fitting is supplied with 6kv Surge Protection Device (SPD) and a vent plugg to avoid condensation inside the fitting. The adjustable steel bracket is given a sinc threatment. The body and the bracket are powder painted in Anthracite RAL 7039.
Application areas
Parking, hotels, shopping, private and official buildings and plants.
Others
Available on request:
– 2200K/3000K/4000K/5700K versions
– Night reduction
– DALI
– Different light distribution (symmetrical or street light)
Technical description
Accessories:

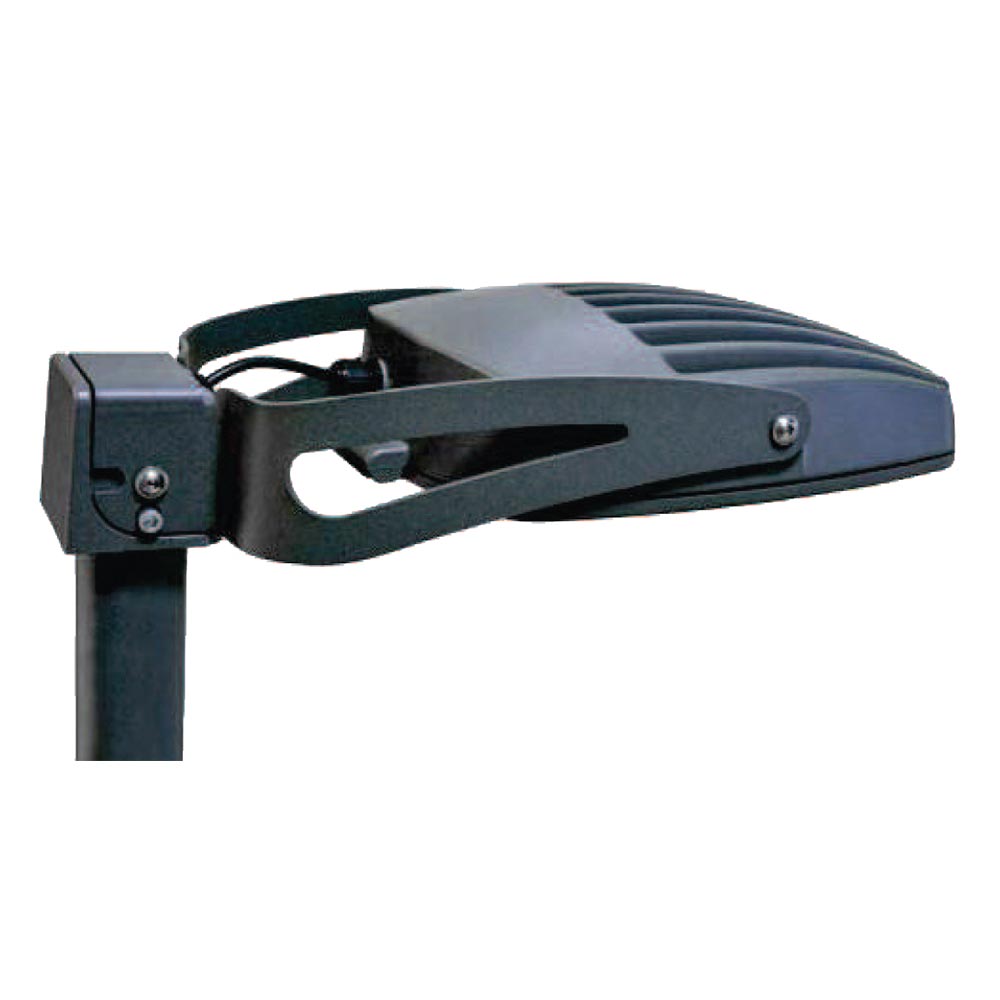

119766 Pole bracket Ø60mm

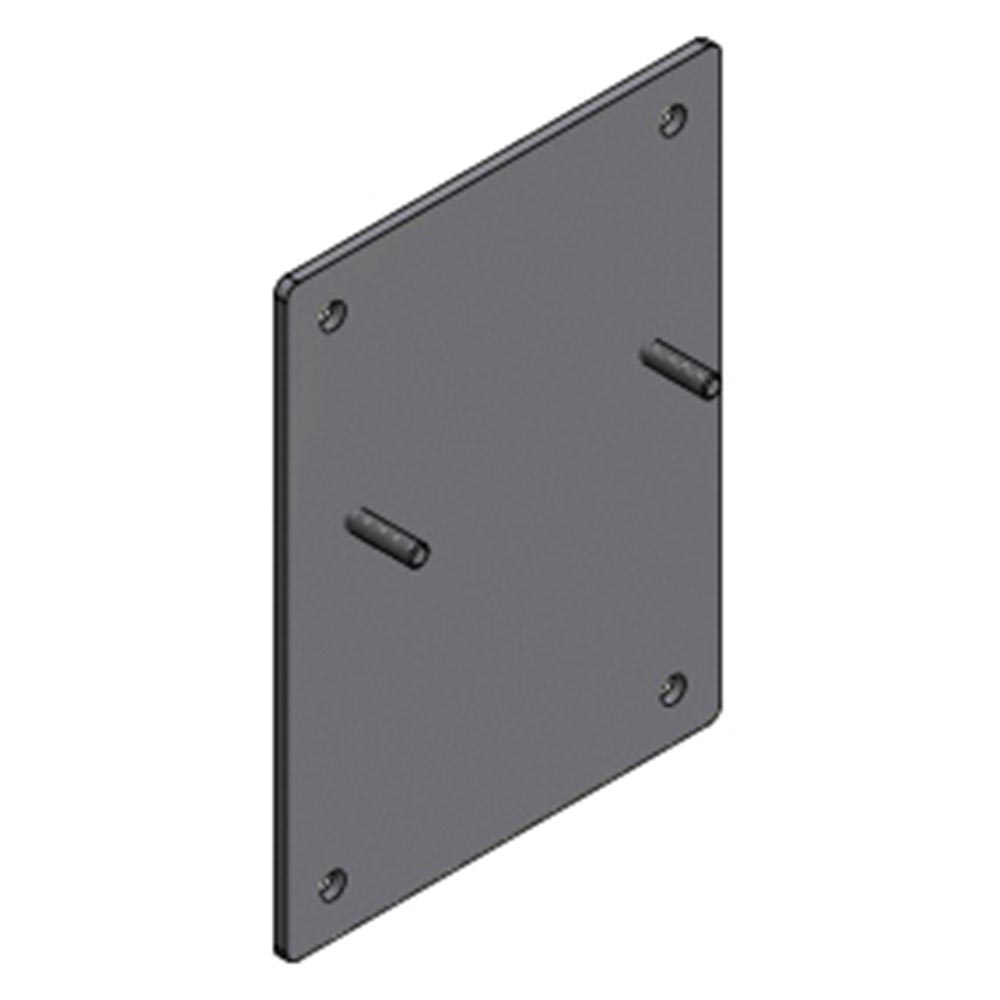

119802 Support plate
Lifetime Ta25: 80.000h L80B10
Lifetime Ta max: 50.000h L80B20
Variant
119682
119619
119683
119620
120556
121882
120228
120069
Effect fitting
Colour temperature
Luminous flux fitting
Colour index Ra
Colour tolerance MacAdam
35W
4000K
4560 lm
>80
3
70W
4000K
9120 lm
>80
3
105W
4000K
13670 lm
>80
3
140W
4000K
18235 lm
>80
3
35W
3000K
4332 lm
>80
3
70W
3000K
8664 lm
>80
3
105W
3000K
12986 lm
>80
3
140W
3000K
17323 lm
>80
3
Mounting
Mounting
Up-standing, hanging and on wall.
Installation
Driver inside the fitting. M20x1,5 nipple.
