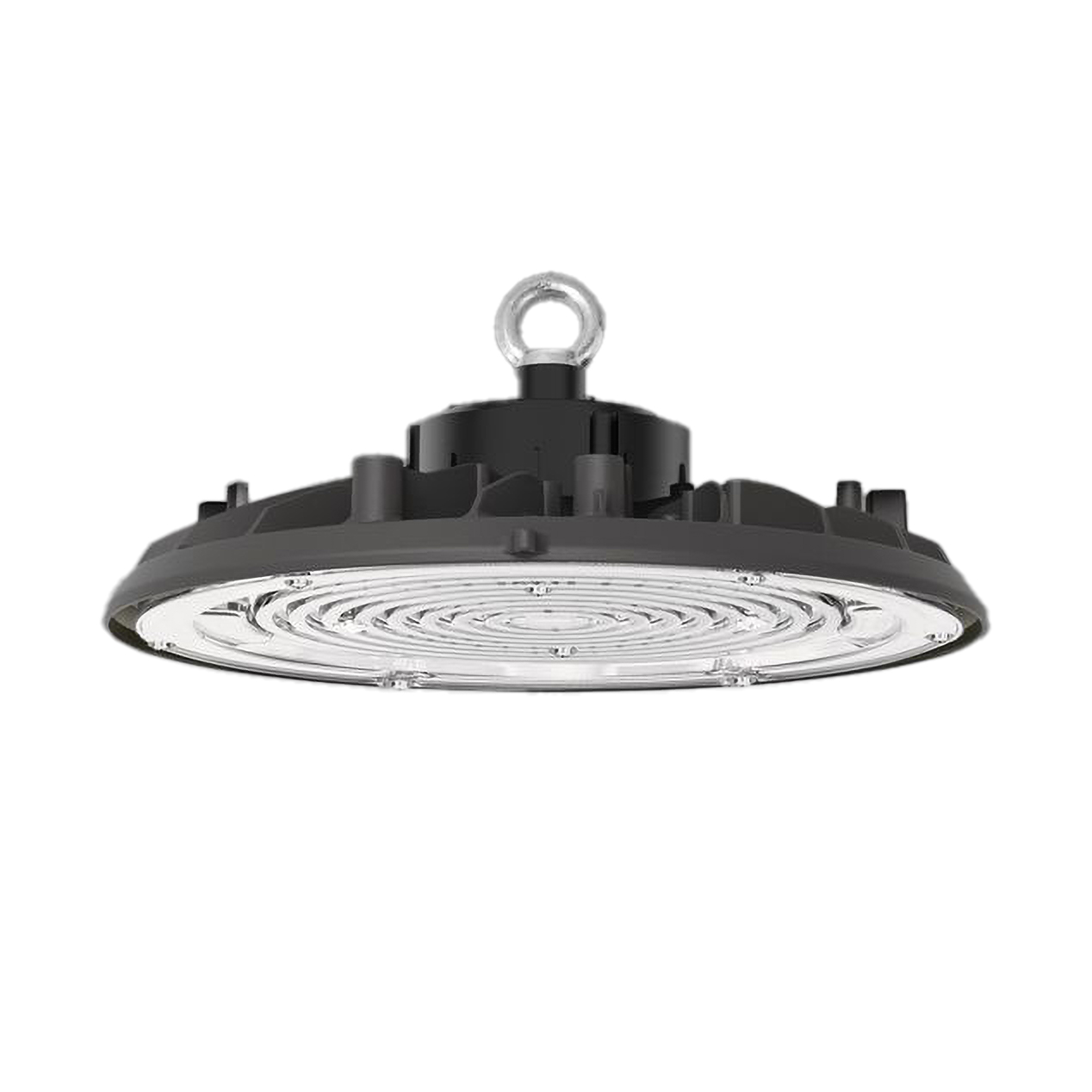

Saturno 2885 Power Switch

– powerful luminaire in aluminium for higher ceiling heights

Item no: 129169
See specifications
Clear
Shortcuts:

Description

Luminaire housing with integrated cooling, made of die-cast aluminium, powder coated in dark grey RAL 7021. Diffuser in polycarbonate, resistant to impacts and shocks. Integrated 4kV surge protection. IP66, Class I, IK08.

Application areas

Industrial premises, warehouses, department stores, exhibition halls, sports halls.

Technical description

Variant
129169
129170
129171
Optics Light source Colour temperature Luminous flux fitting Luminous efficiency fitting Control Weight
Wide beam 80-100-120W 4000K 16150-19800-24480 lm 204 lm/W Power Switch 4,3kg
Wide beam 100-125-150W 4000K 19800-24300-28100 lm 187 lm/w Power Switch 4,3kg
Wide beam 110-150-200W 4000K 20255-28100-34470 lm 172 lm/w Power Switch 4,3kg

Mounting

Saturno is delivered with a mounting eye.

Connection

Sealed cable gland connection, max. 2.5 mm² cable, for quick and easy connection without needing to open the luminaire.

Downloads

Product sheet (pdf)
