Main cabinet with fuses

This systems can be installed without tools or assistance from a certified installer.

Art. nr: 700433

Description

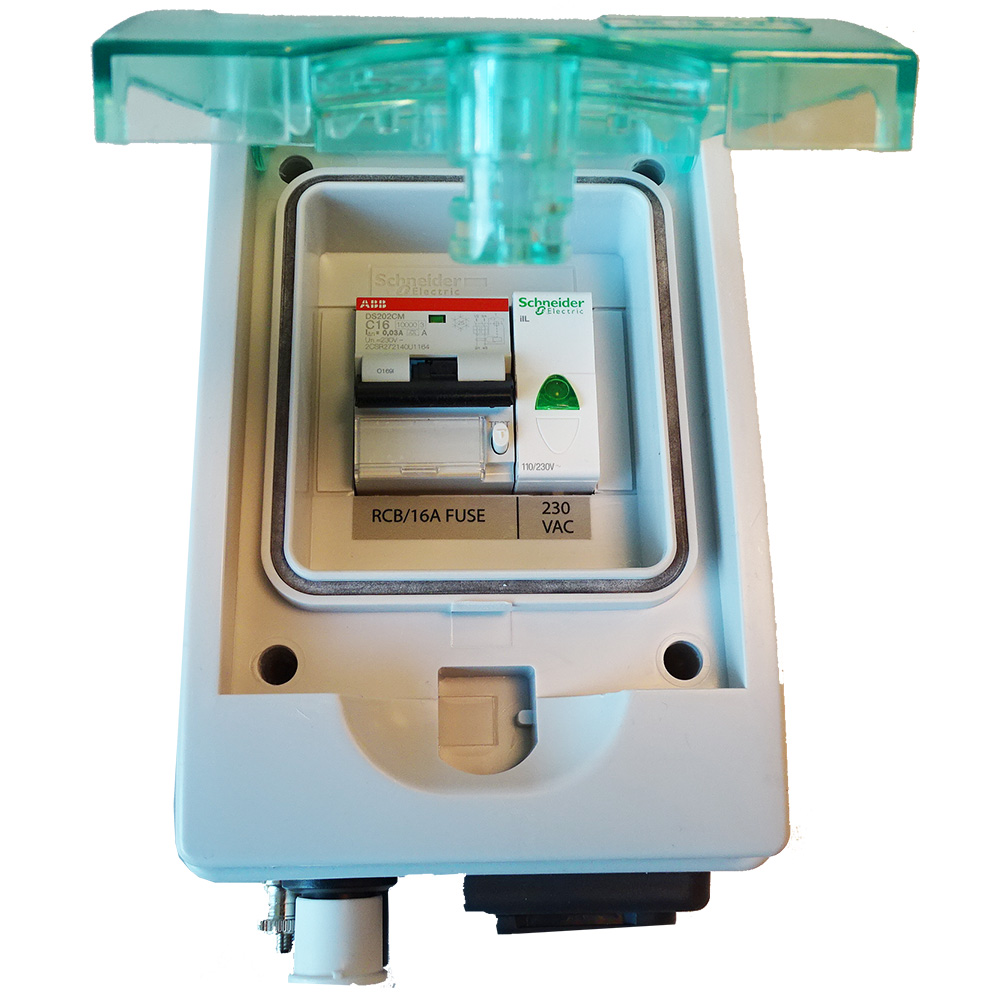

Main cabinet with fuses w/earth-leakage circuit-breaker. The main cabinet is delivered with one Schuko (Norwegian standard) outlet, in addition to DEFA plugs for inlet and outlet. The cabinet is dimensioned for 230VAC, 16A fuse circuits, and contains a “zink saver”, which reduces galvanic corrosion of metals in the boat

Technical description

The el-central has 1 or 2 DEFA PlugIn male inlet contacts and 3 PlugIn female outlets. The inlet is connected through a 16A earth-leakage circuit-breaker switch. 1 of the outlets has a constant voltage and 2 outlets are connected via a switch.

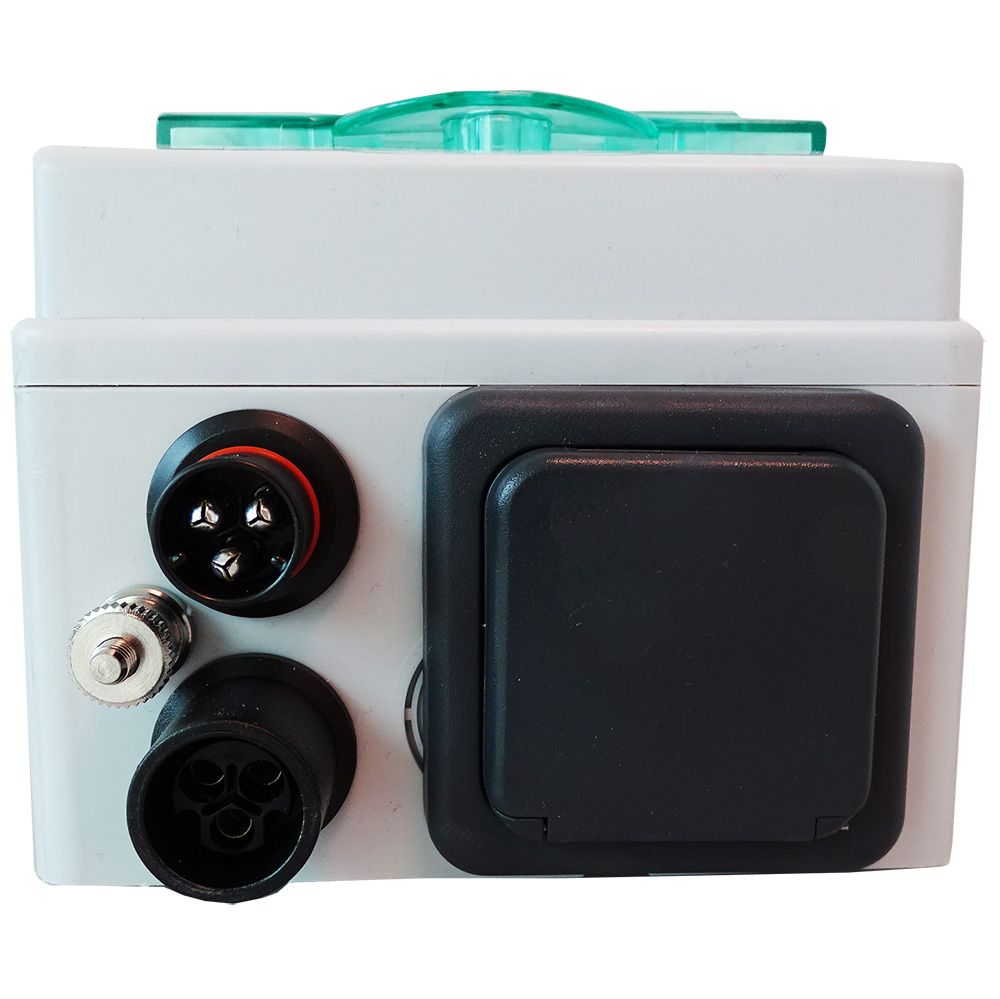

All the connectors are placed on one side. The earth wire contact is connected to a “cathode protected diode bridge”, reducing corrosion when connected to shore power.

DEFA AS conforms to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007. In addition, our engine heaters and cables conform to the requirements of ISO/TS 16949:2002.

Voltage
Current
IP rating
Size
Weight
Certification(s)
230V AC
16A
IP44
175x120x90mm
0,92kg
EN61558-2-4, ISO 13297
