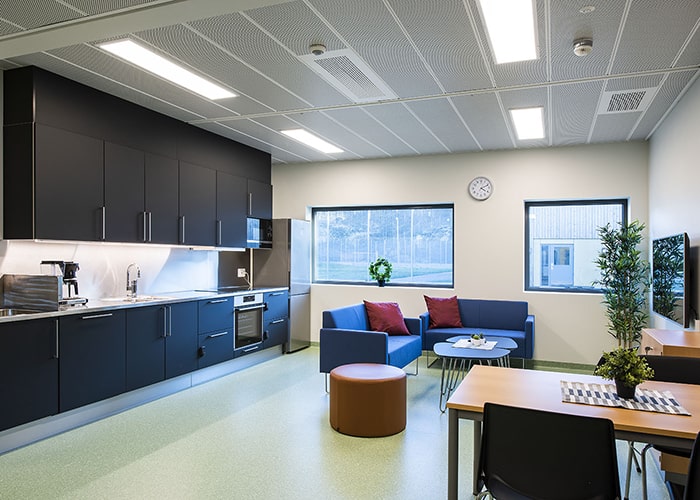

Ledge recessed in office areas

Ledge® Recessed Opal

New generation LED luminaire

Now 30% more efficient. Flexible and user-friendly recessed LED luminaire that provides quality light and effortless installation.

Item no: 124342
See specifications
Clear
Shortcuts:

Description

Ledge Recessed Opal provides even light with very little glare. The installation is quick and simple, saving the installer valuable time. It has a building height of only 11,5 mm, making it possible to recess in places where other products would not fit. When using the IP44 protection plate, all 600×600 versions are IP44 rated.

Construction

Frame in aluminum powder painted in white RAL 9010.

Application areas

Schools, office buildings, meeting facilities, corridors, shops, etc.

Technical description

Accessories

121272 Frame 600×600 white surface mounting – w. hatch
118650 Frame 600×300 white surface mounting
118023 Frame 1200×300 white surface mounting
120701 IP44 protection sheet 600×600 clear 3mm acrylic (Pmma)
125540 IP44 protection sheet 600×300 clear 3mm acrylic (Pmma)
118886 Mounting kit wire suspension
118254 Décor plate 600×600 white circular light opening Ø500

Variant
124342
124341
124092
124091
124086
124085
124083
124082
124344
124343
124095
124094
124089
124088
124084
124394
Module Optics Control Colour temperature Effect fitting Luminous flux fitting Luminous efficiency fitting Colour index Ra Colour tolerance MacAdam Life time h
600x600 Opal No 3000K 18W 2415 lm 134 lm/W >80 <3 L80B10 100.000
600x600 Opal DALI 3000K 18W 2415 lm 134 lm/W >80 <3 L80B10 100.000
600x600 Opal No 3000K 30W 3938 lm 131 lm/W >80 <3 L80B10 100.000
600x600 Opal DALI 3000K 30W 3938 lm 131 lm/W >80 <3 L80B10 100.000
600x300 Opal No 3000K 20W 2415 lm 121 lm/W >80 <3 L80B10 100.000
600x300 Opal DALI 3000K 20W 2415 lm 121 lm/W >80 <3 L80B10 100.000
1200x300 Opal No 3000K 30W 3780 lm 126 lm/W >80 <3 L80B10 100.000
1200x300 Opal DALI 3000K 30W 3780 lm 126 lm/W >80 <3 L80B10 100.000
600x600 Opal No 4000K 18W 2520 lm 140 lm/W >80 <3 L80B10 100.000
600x600 Opal DALI 4000K 18W 2520 lm 140 lm/W >80 <3 L80B10 100.000
600x600 Opal No 4000K 30W 4043 lm 135 lm/W >80 <3 L80B10 100.000
600x600 Opal DALI 4000K 30W 4043 lm 135 lm/W >80 <3 L80B10 100.000
600x300 Opal No 4000K 20W 2520 lm 126 lm/W >80 <3 L80B10 100.000
600x300 Opal DALI 4000K 20W 2520 lm 126 lm/W >80 <3 L80B10 100.000
1200x300 Opal No 4000K 30W 3855 lm 123 lm/W >80 <3 L80B10 100.000
1200x300 Opal DALI 4000K 30W 3855 lm 130 lm/W >80 <3 L80B10 100.000

Mounting

Placed directly in T-profile ceilings or recessed in a surface mounted frame.

Installation

Ledge Recessed Opal is delivered either in an On/Off ”plug & play” version with a 1.5m 2-pol cable and plug from the driver or in a DALI version supplied with a 1.5m 4-pol cable from the driver. DALI entries with DA marking. The driver and the LED panel is connected with a 1m cable.

See mounting instructions under downloads.
