Termini™1000 120V

Interior heater

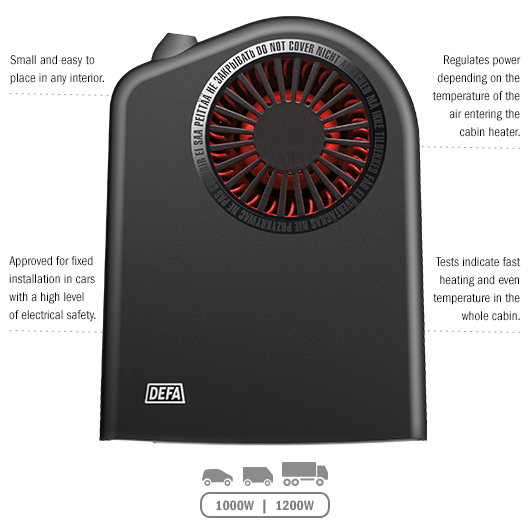

Termini™ 1000 is a compact interior heater that provides increased comfort and less ice and fog on the windows.

Art. nr: 433101

Description

Benefits:

  • Increased comfort – Start your day in a warmer vehicle, with less ice and fog on the windows.
  • Improved safety – Clear windows makes you a better and safer driver. The police will take action against drivers whose vision is impaired by ice.
  • Smart heating – PTC technology effectively regulates the interior temperature, lowering energy consumption as the air inside the vehicle heats up.
  • Quality & design – Sleek Nordic design combined with trademarked connectors and armored cables.

DEFA interior heater uses a PTC (PTC = Positive Temperature Coefficient) heating element which self adjusts the output power according to the inside temperature of the car.

A 20°C/68°F temperature increase will result in a 10% power reduction. As the interior temperature increases the power will gradually be reduced accordingly. The interior heater is equipped with an automatic over- temperature protection. If the system stops, simply unplug the power for 20 minutes to allow the system to reset.

As part of a WarmUp system, the Termini™ interior heater can be controlled via the DEFA app or the Futura control module. When not part of a WarmUp system, Termini™ 1000 is operated with an On/Off switch. It has one output setting: 1000W at -25°C. A PTC heating element ensures that as the interior temperature reaches target levels, power output and consumption is reduced.

The heater is equipped with an automatic overheating circuit breaker. This breaker is tripped at 55°C, and it is reset by disconnecting the plug and leaving the interior heater switched off until it cools down (about 30 minutes). There is also a lead fuse (+80°C) for additional protection. If this fuse is blown, the interior heater must be sent for repair.

Technical description

DEFA AS conforms to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007. In addition, our engine heaters and cables conform to the requirements of ISO/TS 16949:2002.

The interior heater is approved by: UL std. No. 2021 CSA std. C22.2 No. 46.

Rated output/power
Voltage
Temperature range of use
Weight
Bracket
IP rating
Certification(s)
Output at minus 25°C
Output at plus 25°C

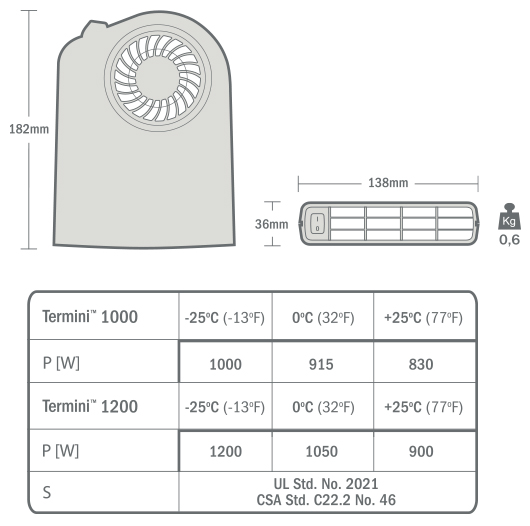

Size
Take-off power, max
1000W
120V
-40°C / +50°C
600gr/21.2oz
20g
IP20
EN60335-1, EN50408, EN55014-1 / 2, EN61000-3-2 / 3-3
0/1000 W
0/800W
H/W/D: 182/138/36mm - 7.2/5.4/1.4in
1500W
