ShowroomCharger 40-50A with special Volvo Software

Charger for dealerships

Specific software to fit Volvo charging curves. Push power button for 5 seconds to enter Power Supply mode.

Item no: 716400
For consumers:

Description

This unique solution is designed to fit Volvo’s charging curve, covering all your needs in the showroom as well as servicing batteries in the parking lot. Thanks to the presence of bracket and rubber feet, the absence of fan, and the detachable cables. With IP 5K3 it can be used indoors and outdoors in extreme weather conditions allowing you to service the batteries in your showroom vehicles as well as outside.

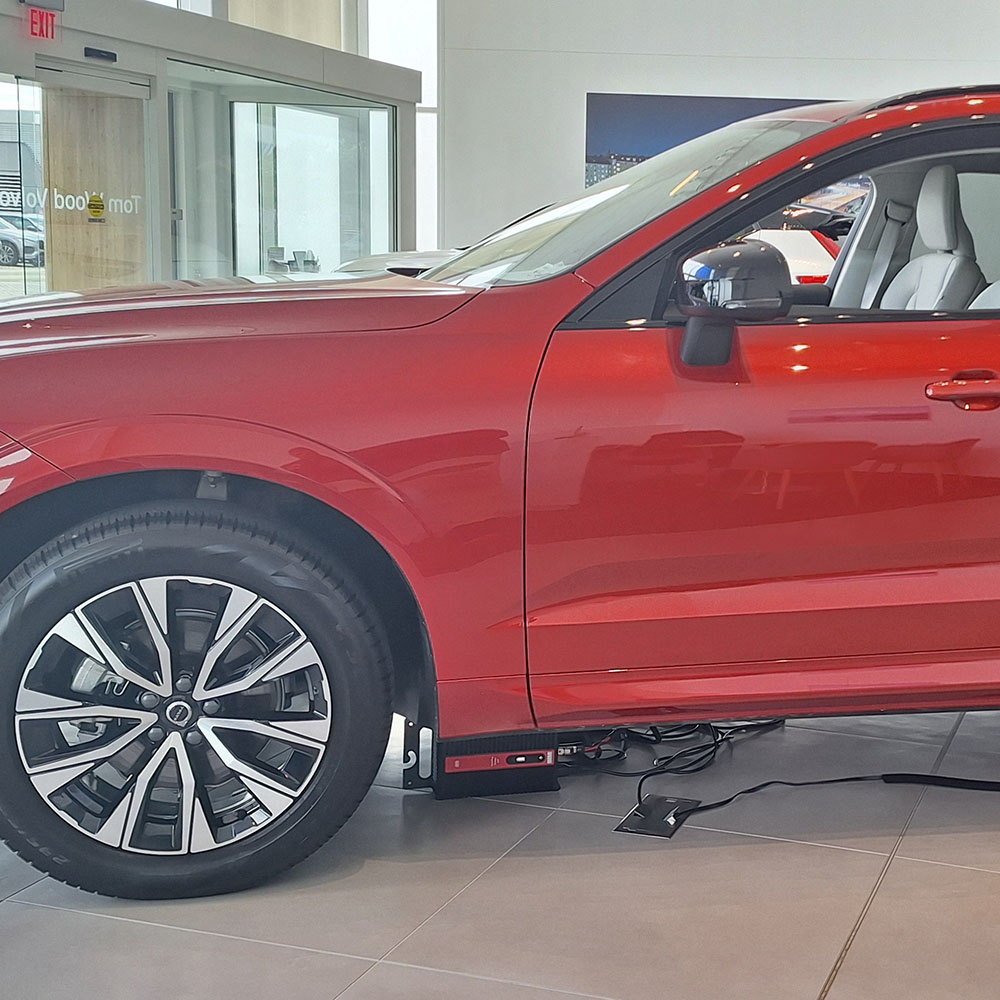

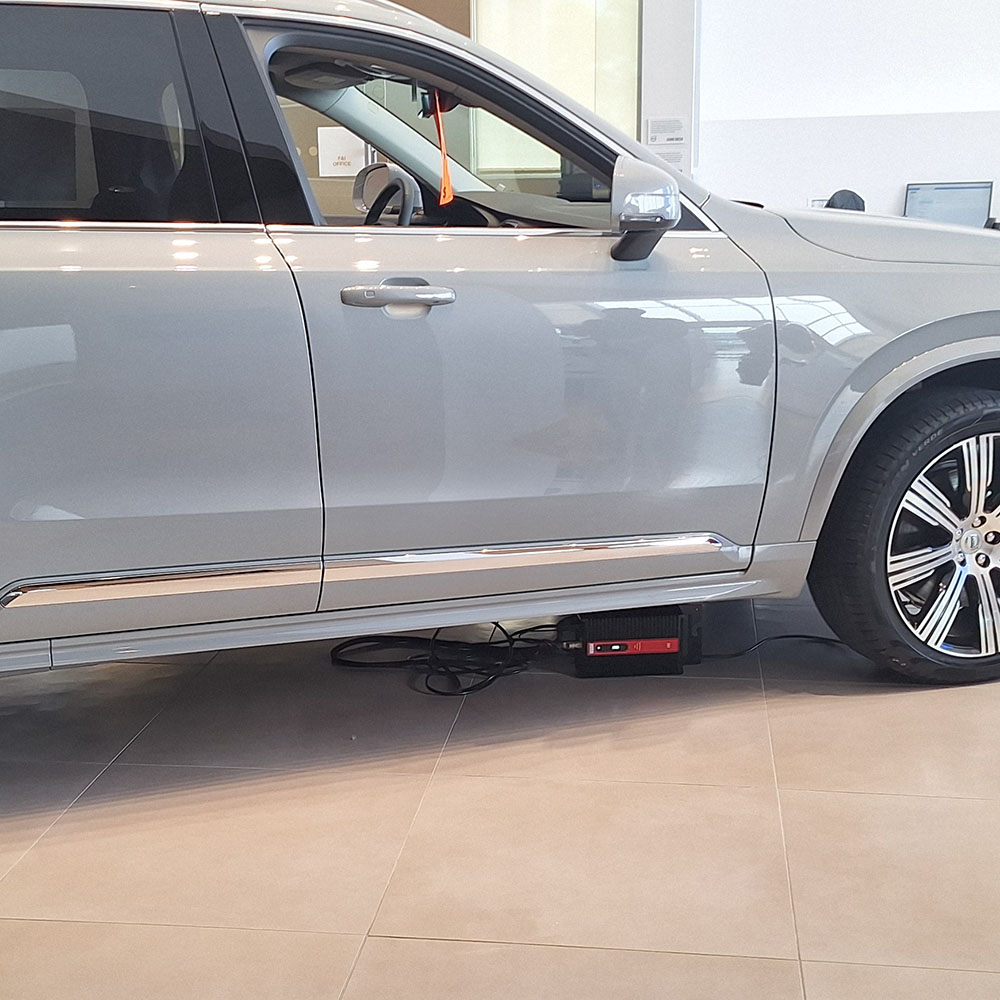

With detachable DC cables and its super compact size, you can easily hide the charger and route the cable through the engine compartment keeping the vehicle and the showroom looking professional, no bulky products, or open hoods.

The charger has no fan which makes it completely silent and durable preventing the introduction of dust.

Its’ rubber feet and corners are designed to protect your vehicles and the showroom floor.

It is 95% efficient and uses a 7-step charging cycle that optimizes the performance and longevity of the battery.

Features – ShowroomCharger 40-50A with special Volvo Software:

  • Special software to meet OE Volvo requirements

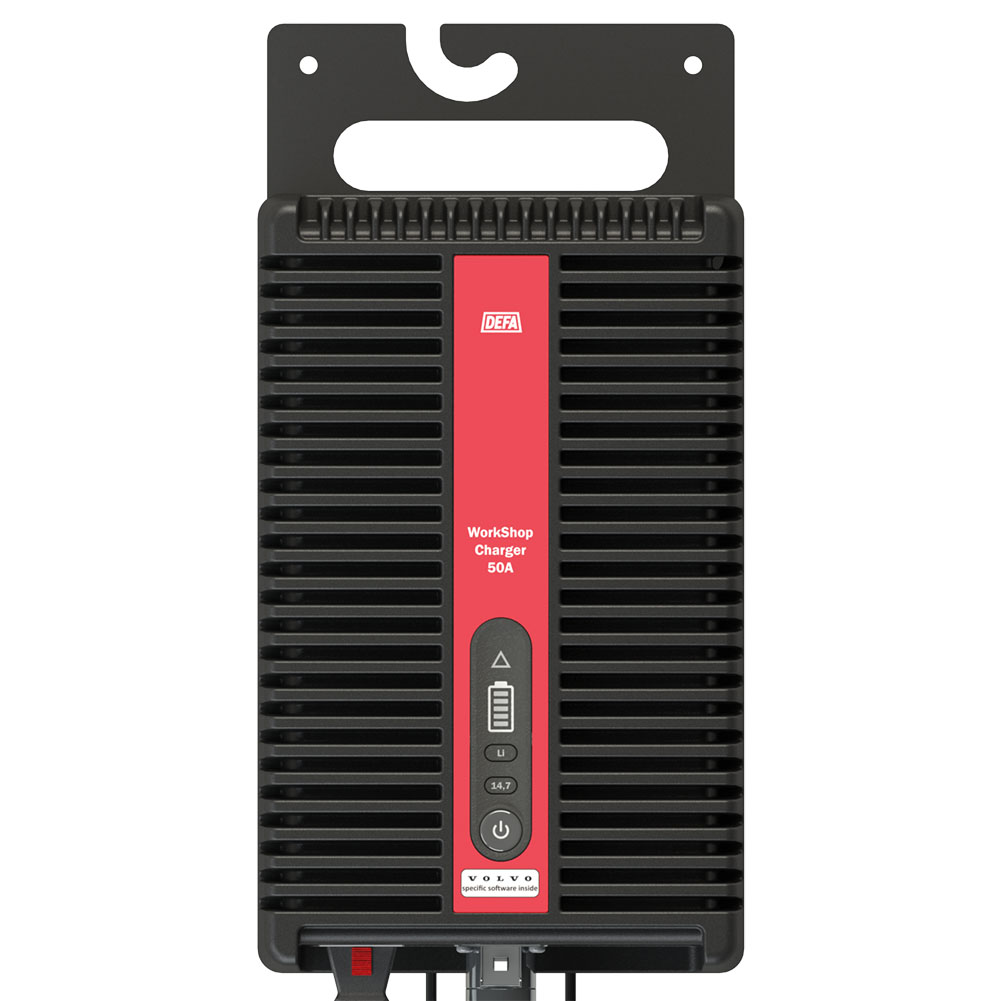

  • User-friendly – one-button solution and intuitive display
  • Charge any battery (Wet, Gel, EFB, AGM, Li-Ion)
  • Special button for 14.7V power supply
  • Power supply for continuous output up to 40A @ 120V and 50A @ 230V
  • Very high efficiency – 95%
  • Optimal charging – 7-step charging curve

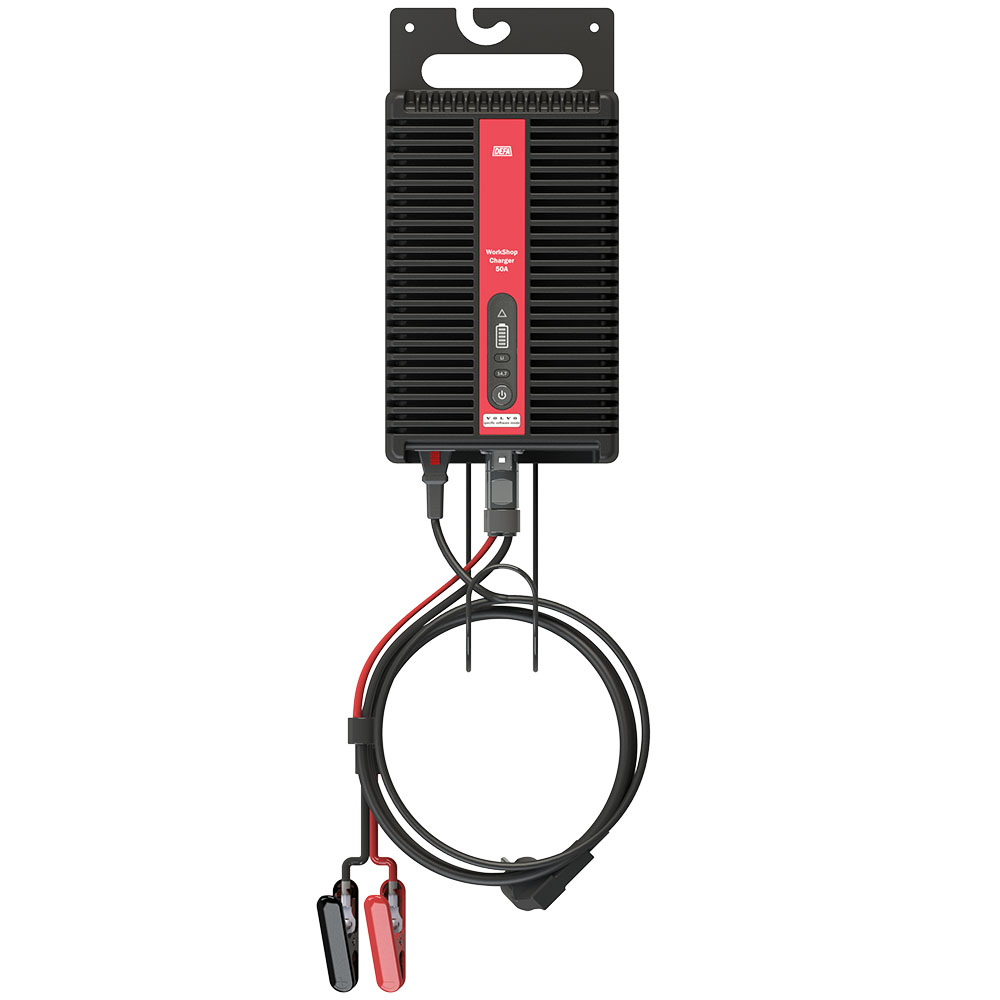

  • Detachable cables allow them to be routed through the engine compartment for discrete operation
  • No fan for fully silent operation
  • Safe – spark and short circuit proof
  • No scratches or marks – rubber feet and corners are available
  • Upgradeable software – via separate USB port

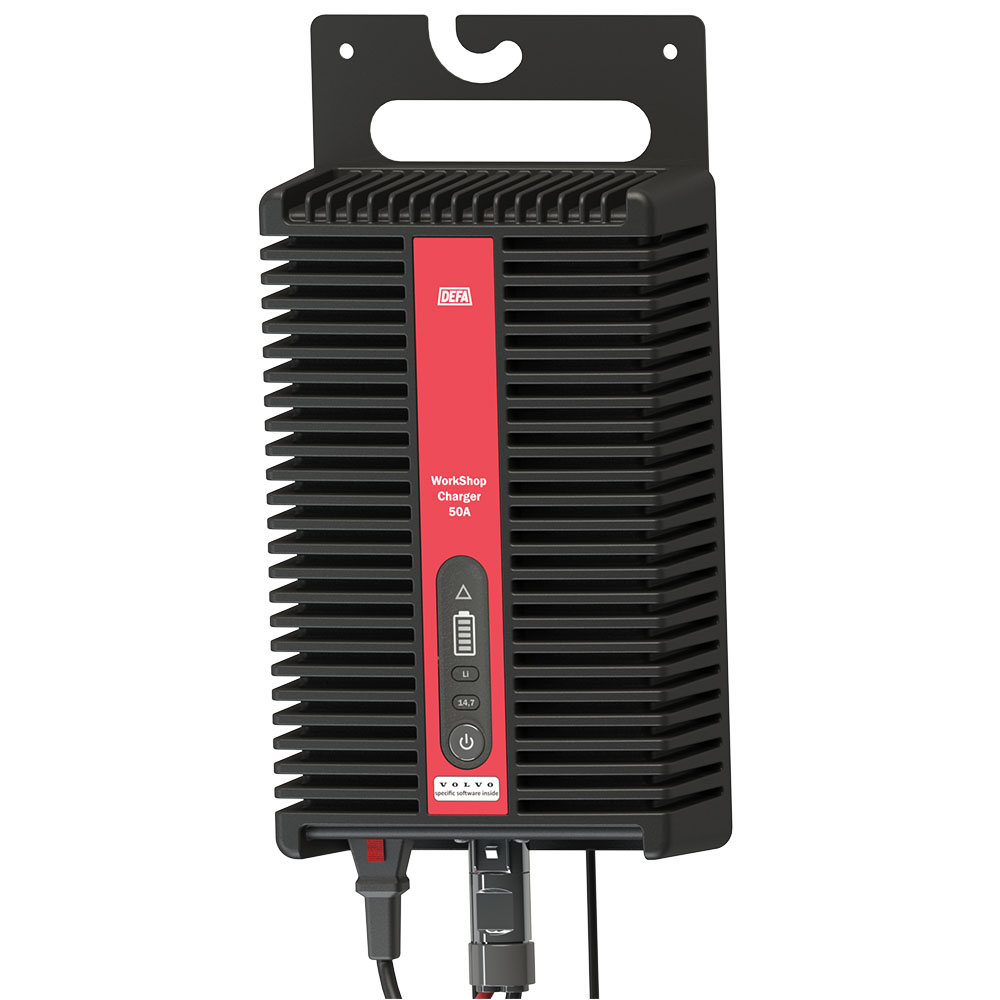

  • Discreet design – black anodized aluminum
  • DEFA AS is conforming to the requirements of ISO 9001, ISO 14001 and ISO 45001.

Read more about ShowroomCharger 40-50A.



Technical description

DEFA AS is conforming to the requirements of ISO 9001, ISO 14001 and ISO 45001. In addition to this, our engine heaters and cables are conforming to the requirements of IATF 16949.

Input voltage
Operating temperature
Charging voltage
Maintenance charging
Charging current @ 120V
Charging current @ 230V
IP rating
AC Power Cord
DC Power Leads
Dimension
Weight
Insulation class
100-240V
-20ºC/+40ºC or -4ºF/+104ºF
14,2V/14,4V/14.7V
13,5/13,6V
40A@14,4V
50A@14,4V
IP5K3
5,0m/16,4ft
5,0m/16,4ft
28.0/17.5/8.5cm or 11.0/6.9/3.4in
7,6kg/16lbs
I
