PlugIn Extension cables – Bulk

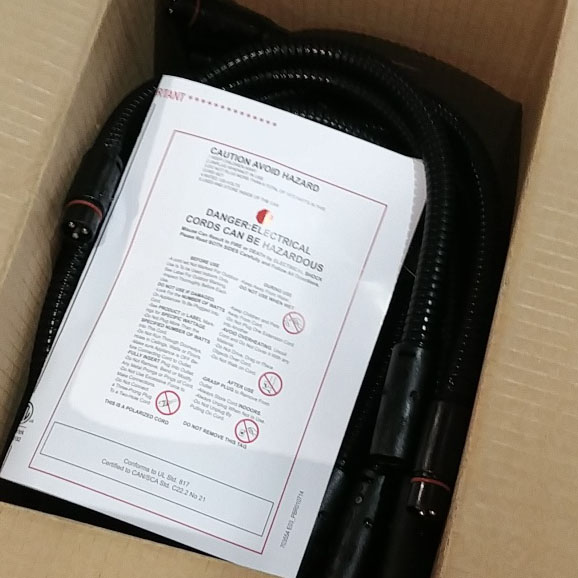

15 pieces bulk packaging

Used for connection of engine- and interior heater

Item no: 463321
Clear

Description

DEFA extension cable reflects the safety and quality in the DEFA products. They are used for connection of engine- and interior heater. DEFA PlugIn extension cable consists of an armored, plastic coated and flexible tube, protecting the wires from heating and other mechanical and chemical stress and influence.

DEFA PlugIn extension cable is available in various lengths, respectively with a male and female PlugIn plug on both ends to prevent any connection error. The red O-ring (B) shall NOT be visible when the PlugIn plug is connected.

The components can easily be connected with DEFA’s armored PlugIn extension cables.
The system is designed to provide a reliable, tight connection and prevent incorrect connections. DEFA MiniPlug connection system prevents intrusion of dust and water, offering a premium level of connectivity.

Technical description

DEFA AS conforms to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007. In addition, our engine heaters and cables conform to the requirements of ISO/TS 16949:2002.

Variant
463321
463322
463323
463324
463325
463326
Pcs. in collection box Voltage Current IP rating Length Weight
15 120V 15A (max) IP44 0.5m/1.6ft 2,7kg/4,8lbs
15 120V 15A (max) IP44 1.0m/3.3ft 3,9kg/8,7lbs
15 120V 15A (max) IP44 1.5m/4.9ft 6,0kg/12,6lbs
15 120V 15A (max) IP44 2.0m/6.6ft 7,4kg/16,4lbs
15 120V 15A (max) IP44 2.5m/8.2ft 9,6kg/21,2lbs
15 120V 15A (max) IP44 3.0m/9.8ft 10,7kg/23,6lbs
