LedLine

LED - light strip

LEDLine - LED light strip in several length for connection

Item no: 119327
See specifications
Clear
Shortcuts:

Description

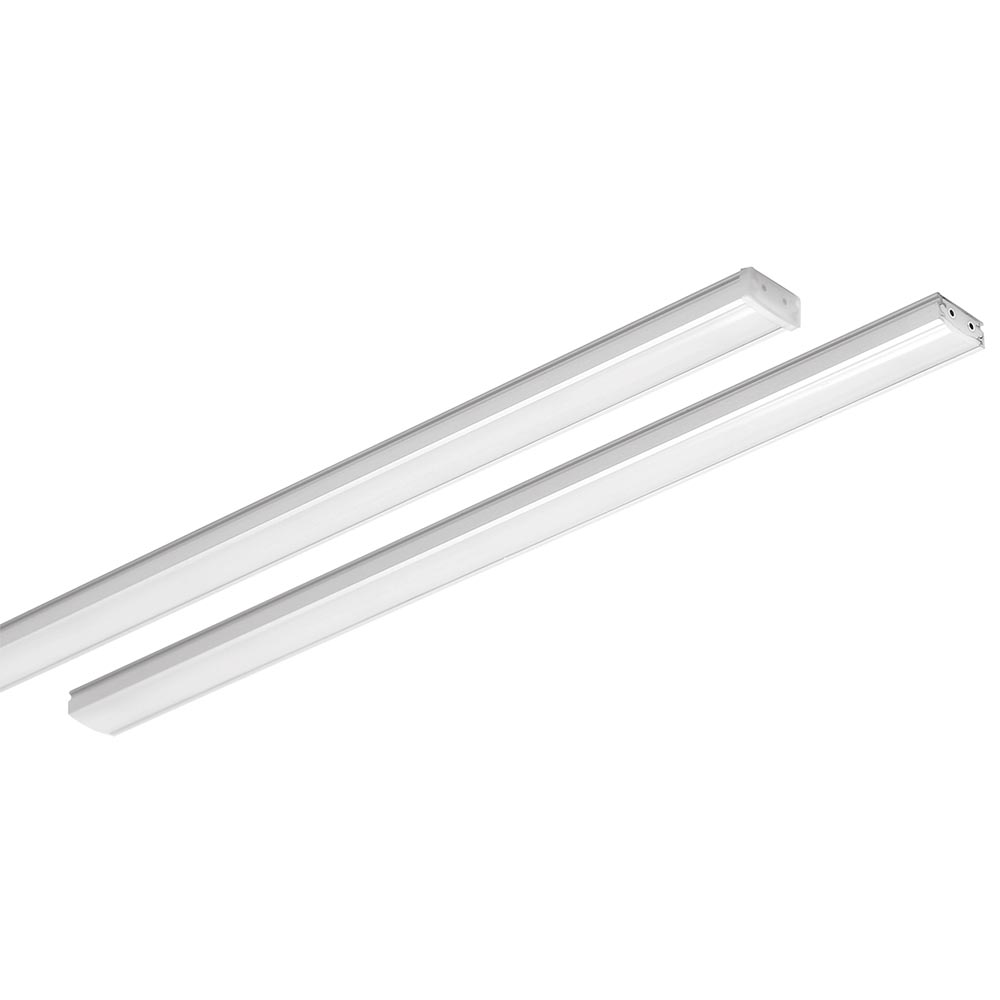

LEDLine light strip is available i several lengths to be used as separate light fittings or connected together in streigh or angled lengths by use of various connectors. Push-in power connection, with or witout switch, supplied with 2 m cable for connection to separate LED driver. Fitting in extruded aluminium with opal acrylic diffuser.

Application area

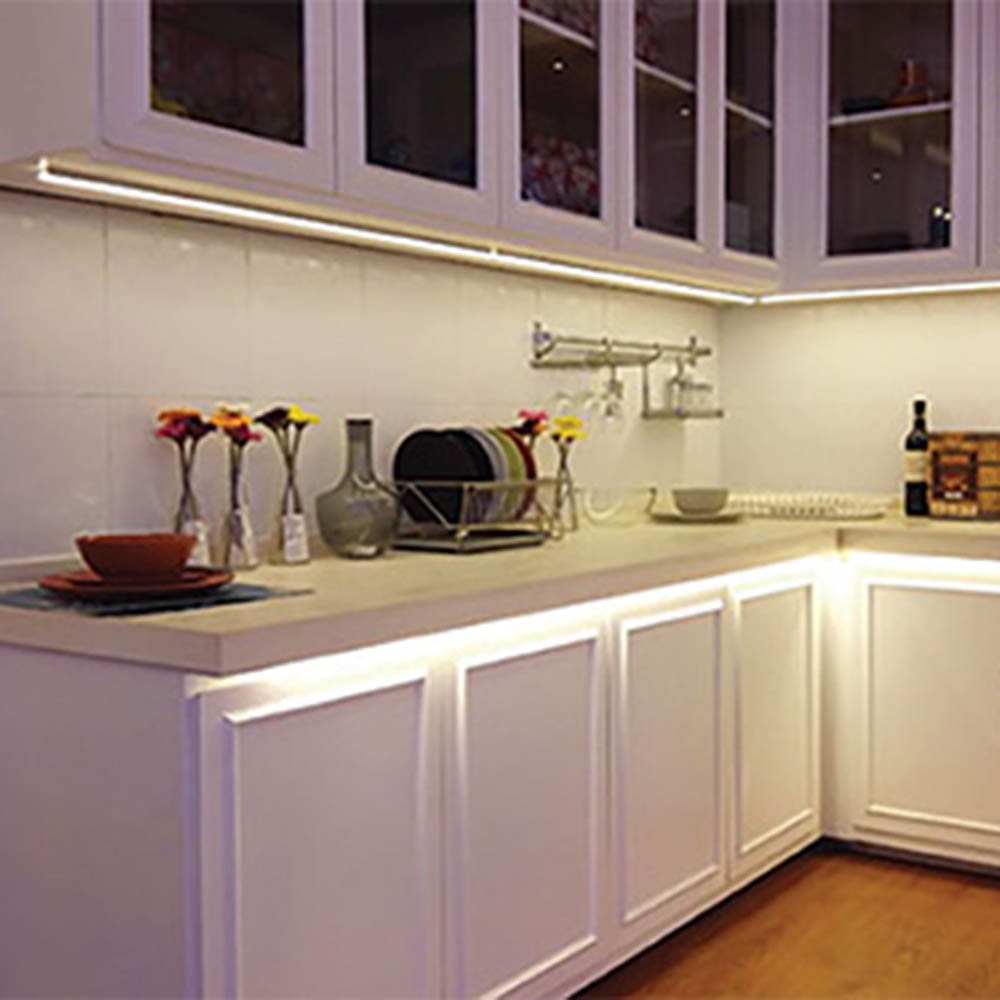

In ceiling, on wall, underneath shelfs, cabinets, top-cupboards etc.

Light source

– LED 3000K
– RA 92

Dimming

Dimmable with Trailing edge dimmers.
Recommended dimmer: ELKO 315 GLE

Technical description

Variant
119327
119328
119329
119330
119544
119546
119787
119338
119339
120445
119332
119334
119333
119335
119336
120131
120132
Variant Light source Length Control Colour temperature Colour index Ra
LedLine 300 LED 5W 300 mm 3000K 92
LedLine 600 LED 9W 600 mm 3000K 92
LedLine 900 LED 14W 900 mm 3000K 92
LedLine 1200 LED 17W 1200 mm 3000K 92
Driver 30W non-dimmable
Driver 75W non-dimmable
Driver 50W dimmable
Power connector - end without switch
Power connector - end with switch
Power connector - center without switch
Fixing clips 45
connector corner
connector - straight
connector 90 - right
connector 90 - left
T-connector
Extension cord 500mm

Mounting

Mounting
Direct on horisontal or vertical surfaces by use of steel fixing clips.

Installation
Push-in power connection, with or witout switch, supplied with 2 m cable for connection to separate LED driver.
